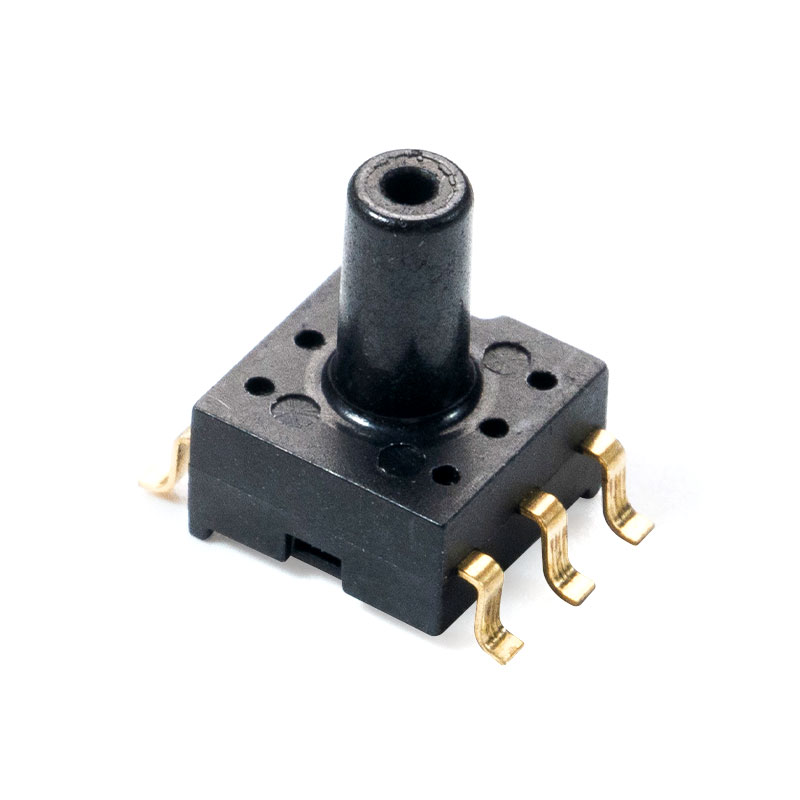

Paraiméadair aschuir
Sraith MCP-H10-A
| Saintréith | Siombail | Min | Clóscríobh | uas | Aonad |
| Aschur brú íosta (0 ℃ go 85 ℃) @ VS = 5.0V | V as | 0.44 | 0.5 | 0.56 | VDC |
| uas pressure output（0℃ to 85℃）@ VS = 5.0V | V FSO | 4.44 | 4.5 | 4.56 | VDC |
| Aschur scála iomlán (0 ℃ go 85 ℃) @ VS = 5.0V | V FSS | 3.88 | 4 | 4.12 | VDC |
Sraith MCP-H10-B
| Saintréith | Siombail | Min | Clóscríobh | uas | Aonad |
| Aschur brú íosta (0 ℃ go 85 ℃) @ VS = 3.3V | V as | 0.055 | 0.1 | 0.145 | VDC |
| uas pressure output（0℃ to 85℃）@ VS =3.3V | V FSO | 3.055 | 3.1 | 3.145 | VDC |
| Aschur scála iomlán (0 ℃ go 85 ℃) @ VS = 3.3V | V FSS | 2.91 | 3 | 3.09 | VDC |
Cur síos ar Fheidhm
Forbhreathnú
Úsáideann braiteoir brú sraith MCP-H10 sliseanna brú piezoresistive MEMS mar eilimint braite brú, a aschuireann comhartha amh atá comhréireach le brú an chomhshaoil. Tiomáineann sliseanna aeroiriúnaithe le ADC 24-giotán an eilimint íogair, aimplíonn sé a comhartha bunaidh, cúitíonn sé teocht agus líneacht, agus aschuireann sé comhartha aschuir voltais analógach a bhfuil baint líneach aige leis an mbrú feidhmithe.
Feidhm aistrithe
 |  |

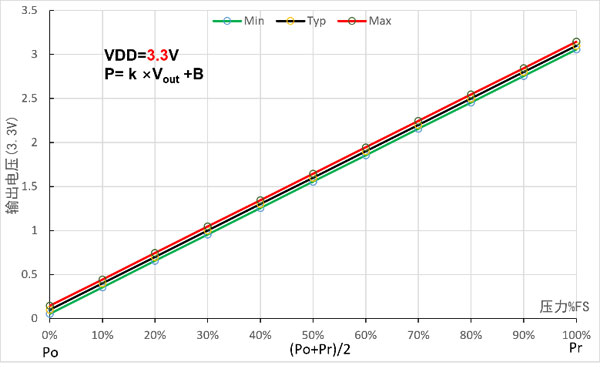

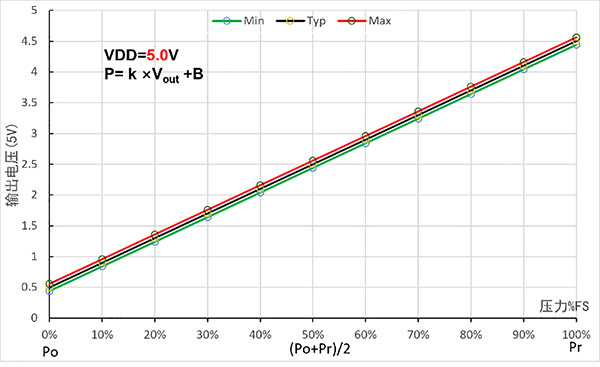

Fíor 3.1 Feidhm Aistrithe Aschuir Analógach
P= k ×Vout b
Nóta: Is é Vout an voltas aschuir analógach (aonad: V); Is é P an luach brú (i kPa); k. Seasann b don chomhéifeacht líneach agus don fhritháireamh, mar a thaispeántar sa tábla thíos.
Tábla 3.1 Paraiméadair Feidhme Aistrithe Aschuir Analógacha
| Múnla táirge （5.0V） | Raon (kPa) | Voltas aschuir (V) | Comhéifeachtaí agus fritháirimh | |||
| Po | Pr | O L | O H | k | B | |
| MCP-H10-A2KP5P | 0 | 2.5 | 0.5 | 4.5 | 0.625 | -0.3125 |
| MCP-H10-A2KP5PN | -2.5 | 2.5 | 0.5 | 4.5 | 1.25 | -3.125 |
| MCP-H10-A5KPP | 0 | 5 | 0.5 | 4.5 | 1.25 | -0.625 |
| MCP-H10-A5KPPN | -5 | 5 | 0.5 | 4.5 | 2.5 | -6.25 |
| MCP-H10-A10KPP | 0 | 10 | 0.5 | 4.5 | 2.5 | -1.25 |
| MCP-H10-A10KPPN | -10 | 10 | 0.5 | 4.5 | 5 | -12.5 |
| MCP-H10-A40KPP | 0 | 40 | 0.5 | 4.5 | 10 | -5 |
| MCP-H10-A40KPN | 0 | -40 | 0.5 | 4.5 | -10 | 5 |
| MCP-H10-A40KPPN | -40 | 40 | 0.5 | 4.5 | 20 | -50 |
| MCP-H10-A100KPP | 0 | 100 | 0.5 | 4.5 | 25 | -12.5 |
| MCP-H10-A100KPN | 0 | -100 | 0.5 | 4.5 | -25 | 12.5 |
| MCP-H10-A100KPPN | -100 | 100 | 0.5 | 4.5 | 50 | -125 |
| MCP-H10-A200KPP | 0 | 200 | 0.5 | 4.5 | 50 | -25 |
| MCP-H10-A200KPPN | -100 | 200 | 0.5 | 4.5 | 75 | -137.5 |
| MCP-H10-A500KPP | 0 | 500 | 0.5 | 4.5 | 125 | -62.5 |
| MCP-H10-A1000KPP | 0 | 1000 | 0.5 | 4.5 | 250 | -125 |
| MCP-H10-A1000KPPN | -100 | 1000 | 0.5 | 4.5 | 275 | -237.5 |
| Múnla táirge （3.3V） | Raon (kPa) | Voltas aschuir (V) | Comhéifeachtaí agus fritháirimh | |||
| Po | Pr | OL | Ó | k | B | |
| MCP-H10-B2KP5P | 0 | 2.5 | 0.1 | 3.1 | 0.833 | -0.083 |
| MCP-H10-B2KP5PN | -2.5 | 2.5 | 0.1 | 3.1 | 1.667 | -2.667 |
| MCP-H10-B05KPP | 0 | 5 | 0.1 | 3.1 | 1.667 | -0.167 |
| MCP-H10-B05KPPN | -5 | 5 | 0.1 | 3.1 | 3.333 | -5.333 |
| MCP-H10-B10KPP | 0 | 10 | 0.1 | 3.1 | 3.333 | -0.333 |
| MCP-H10-B10KPPN | -10 | 10 | 0.1 | 3.1 | 6.667 | -10.667 |
| MCP-H10-B40KPP | 0 | 40 | 0.1 | 3.1 | 13.333 | -1.333 |
| MCP-H10-B40KPN | 0 | -40 | 0.1 | 3.1 | -13.333 | 1.333 |
| MCP-H10-B40KPPN | -40 | 40 | 0.1 | 3.1 | 26.667 | -42.667 |
| MCP-H10-B100KPP | 0 | 100 | 0.1 | 3.1 | 33.333 | -3.333 |
| MCP-H10-B100KPN | 0 | -100 | 0.1 | 3.1 | -33.333 | 3.333 |
| MCP-H10-B100KPPN | -100 | 100 | 0.1 | 3.1 | 66.667 | -106.667 |
| MCP-H10-B200KPP | 0 | 200 | 0.1 | 3.1 | 66.667 | -6.667 |
| MCP-H10-B200KPPN | -100 | 200 | 0.1 | 3.1 | 100 | -110 |
| MCP-H10-B500KPP | 0 | 500 | 0.1 | 3.1 | 166.667 | -16.667 |
| MCP-H10-B1000KPP | 0 | 1000 | 0.1 | 3.1 | 333.333 | -33.333 |
| MCP-H10-B1000KPPN | -100 | 1000 | 0.1 | 3.1 | 366.667 | -136.667 |
